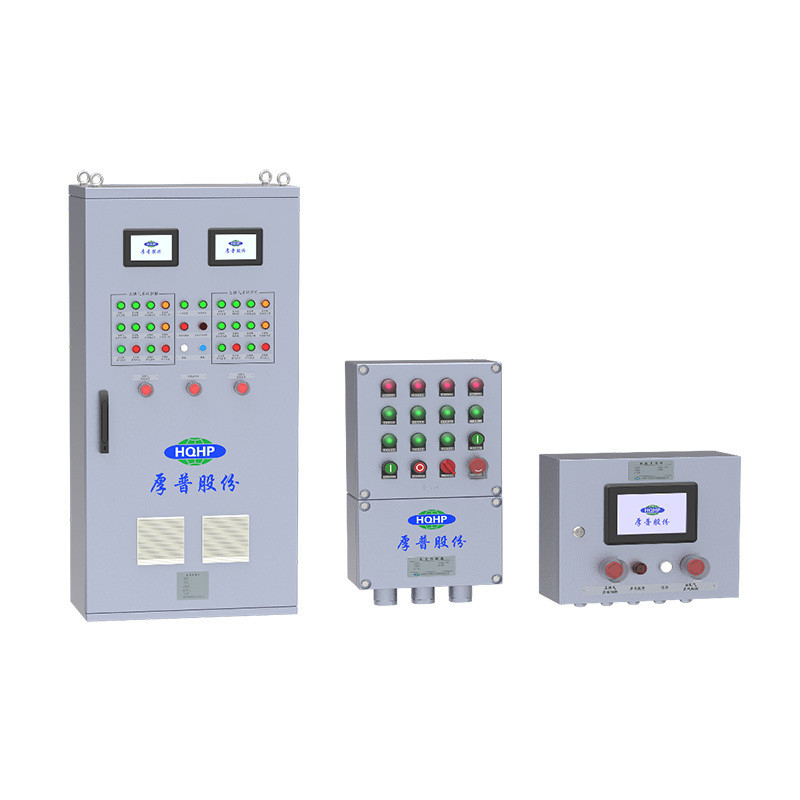

LNG-Powered Ship Control System

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Descrizione di prodotto

According to the storage tank temperature, liquid level, pressure sensor, ESD button and various on-site flammable gas detectors, phase lock protection and emergency cut-off can be performed, and the relevant monitoring and security status can be sent to the cab through network transmission.

Product features
Specifications
Ask now

Product features

Distributed architecture, high stability and security.

LNG fuel powered ship control system

● Approved by CCS.
● Optimized operation mode, fully automatic gas supply, no need for personnel to operate.

● Modular design, easy to expand.
● Wall-mounted installation saves cabin space.

System Parameters

Power voltage	AC220V, DC24V
Power	500W

Specifications

Name	Fuel gas control cabinet	Filling control box	Operation Board of bridge control console
Dimension (L×W×H)	800×600×300(mm)	350×300×200(mm)	450×260(mm)
Protection class	IP22	IP56	IP22
Explosion-proof grade	----	Exde IIC T6	----
Ambient temperature	0～50℃	-25～70℃	0～50℃
Applicable conditions	Enclosed spaces with normal temperature, high temperature and vibration.	Ex area (zone 1).	bridge control console

Application

This product is used with the LNG powered ship gas supply system, and can be used in various LNG fuel powered bulk carriers, port ships, cruise ships, passenger ships, engineering ships, etc.
