on-site hydrogen production Alkaline water hydrogen production equipment

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Nome del prodotto:

Attrezzature per la produzione di idrogeno in acqua alcalina

Produttori OEM:

- Sì, sì.

Scenario di applicazione:

produzione di idrogeno in loco

Personalizzabile:

- Sì, sì.

Qualità:

Altezza

Vantaggi:

Avvio veloce

Descrizione di prodotto

Product introduction

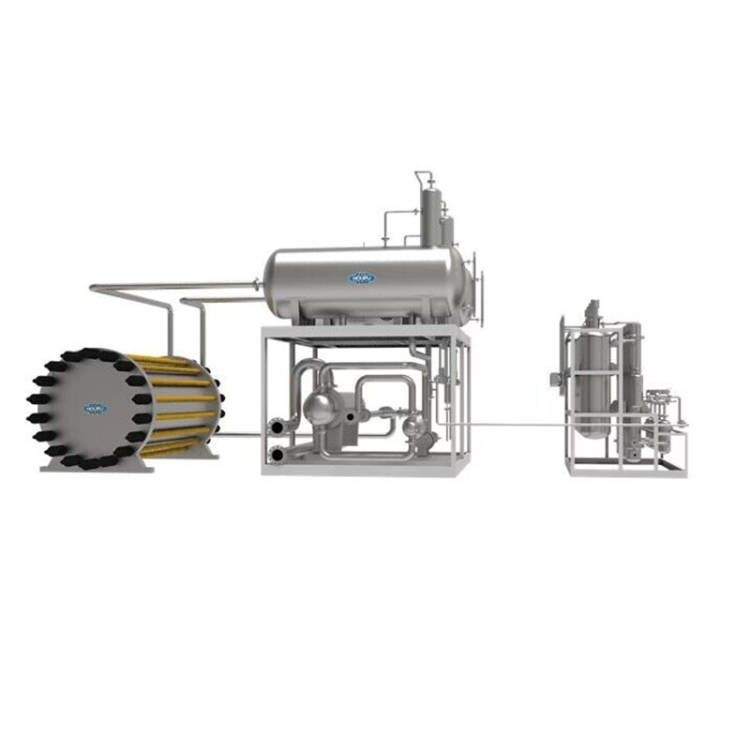

Alkaline electrolysis water hydrogen production equipment , the system mainly includes: electrolysis unit, separation unit, purification unit, power supply unit, alkali circulation unit, etc. Among them, the split alkaline water hydrogen production equipment is mainly used in large-scale hydrogen production scenarios, and the integrated alkaline water hydrogen production equipment is ready for use and is suitable for on-site hydrogen production/laboratory.

Specifications

model	FT-100	FT-200	FT-500	FT-800	FT-1000	FT-1200	FT-1500
Hydrogen production (Nm³/h)	100	200	500	800	1000	1200	1500
Rated DC current (A)	4600	6360	8000	21200	21200	21200	21200
Rated DC voltage (V)	106	160	300	184	228	274	342
Optional energy efficiency levels	I/II/III
Overall dimensions (reference) WDH	250016501860	375018502050	600019002200	515023602635	575023602635	645023602635	750023602635
Weight (reference)(KG)	14000	22000	35000	37000	39800	46000	53000
Operating pressure (MPa)	1.6(adjustable)
Working temperature (℃)	85±5
Hydrogen purity (%)	Before purification: 99.8%; after purification: 99.999%
Oxygen purity (%)	≥98.5%
life	25 years (overhaul cycle is 10 years)
Note: The energy efficiency level is in accordance with GB32311-2015 "Limited Values and Energy Efficiency Levels of Water Electrolysis Hydrogen Production System". The single tank fluctuating load response range of the product is 25%-100%. Under suitable conditions, the cold start to full load operation time is 30 minutes, and the hot start time 10 seconds; adapted to the needs of new energy power-scale hydrogen production.

mission

Efficient use of energy to improve the human environment
